IN5276 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting, not flush, 1 Form A (N/O) + 1 Form B (N/C), 55 V (DC), 300 mA, IN5276
Order No.: 82P6198
EAN: 4021179135399
MPN:
IN5276
Unit Price (€ / pc.)
123.6886 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
123.69 € *
Price list
Quantity
Price per unit*
1 pcs.
123.6886 €
3 pcs.
120.2614 €
5 pcs.
117.0365 €
*incl. VAT plus shipping costs
**Subject to prior sale

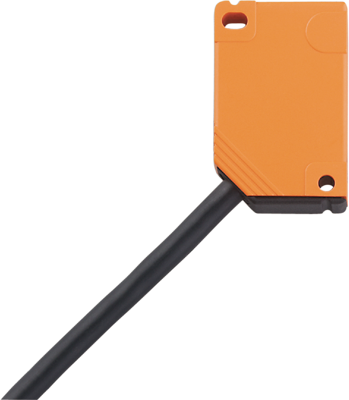

Inductive sensor, IN5276, IFM electronic
Features
- Particularly space-saving rectangular housing
- For use where space is restricted
- Output function normally open / normally closed programmable
- Very high switching frequency
- Two-wire technology
Technical specifications
| Connection | Kabel, PUR 2x0,5 mm², 10 m | |
| Version | PNP/NPN | |
| Detecting distance | 4 mm | |
| Length | 40 mm | |
| Assembly | Einbaumontage, nicht bündig | |
| Product type | Induktiver Sensor | |
| Latching switching function | 1 Schließer + 1 Öffner | |
| Switching Voltage (DC) | 55 V | |
| switching current | 300 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
