IO5016 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting, flush, 1 Form A (N/O), 36 V (DC), 100 mA, IO5016
Order No.: 82P6220
EAN: 4021179136761
MPN:
IO5016
Unit Price (€ / pc.)
127.6513 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
127.65 € *
Price list
Quantity
Price per unit*
1 pcs.
127.6513 €
3 pcs.
124.1170 €
5 pcs.
120.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale

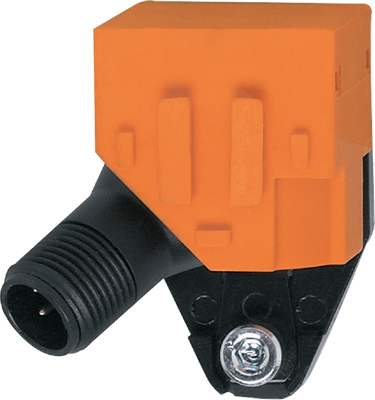

Inductive sensor, IO5016, IFM electronic
Features
- For use where space is restricted
- Snap-fit mounting for fast installation
- Three positions of the sensing face selectable
- Resistant to oils and coolants
- M12 connector rotatable by 270°
Technical specifications
Connection | M12-Steckverbinder | |
Version | PNP/NPN | |
Detecting distance | 10 mm | |
Length | 43 mm | |
Assembly | Einbaumontage, bündig | |
Product type | Induktiver Sensor | |
Latching switching function | 1 Schließer | |
Switching Voltage (DC) | 36 V | |
switching current | 100 mA | |
Degree of protection (IP) | IP67 |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85365019 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
