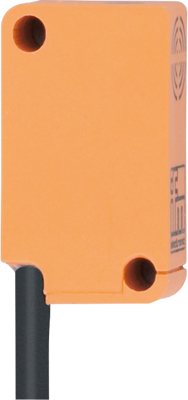

IS5003 | IFM electronic
IS5003, Inductive sensor, 28 x 10 x 16 mm, Sensinginfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6247
EAN: 4021179137850
MPN:
IS5003
Unit Price (€ / pc.)
98.7462 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
98.75 € *
Price list
Quantity
Price per unit*
1 pcs.
98.7462 €
3 pcs.
96.0092 €
5 pcs.
93.4269 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inductive sensor, IS5003, IFM electronic
Features
- Particularly space-saving rectangular housing
- For use where space is restricted
- Very high switching frequency
- Wide operating temperature range
- Clearly visible indication of the switching status
Technical specifications
| Connection | cable connection 2 m | |
| Version | inductive sensor | |
| Detection range | 2 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 200 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
