IZ5036 | IFM electronic
Inductive sensor, PNP, flush mounting, flush, 1 Form A (N/O), 36 V (DC), 100 mA, IZ5036
Order No.: 82P6303
EAN: 4021179141550
MPN:
IZ5036
Unit Price (€ / pc.)
126.0805 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
126.08 € *
Price list
Quantity
Price per unit*
1 pcs.
126.0805 €
3 pcs.
122.5938 €
5 pcs.
119.2975 €
*incl. VAT plus shipping costs
**Subject to prior sale

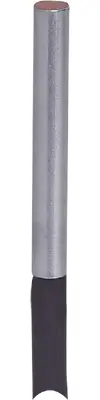

Inductive sensor, IZ5036, IFM electronic
Features
- Particularly short housing with only 4 mm diameter
- For use where space is restricted
- Space-saving connection technology
- Robust stainless steel housing for use in harsh industrial environments
- Very high switching frequency
Technical specifications
| Connection | Kabel, PUR/PVC 3x0,14 mm², 2 m | |
| Version | PNP | |
| diameter | 4 mm | |
| Detecting distance | 0,8 mm | |
| Length | 30 mm | |
| Assembly | Einbaumontage, bündig | |
| Product type | Induktiver Sensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (DC) | 36 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
