KG5066 | IFM electronic

Capacitive sensor, PNP, IO-Link, flush mounting M18, not flush, 1 Form A (N/O) + 1 Form B (N/C), 36 V (DC), 200 mA, KG5066

Order No.: 82P6352
EAN: 4021179146463
MPN:
KG5066

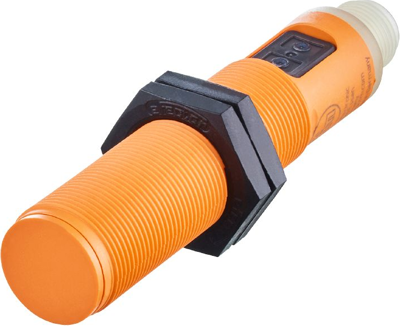

KG5066 IFM electronic Proximity Switches, Reed switches Image 1

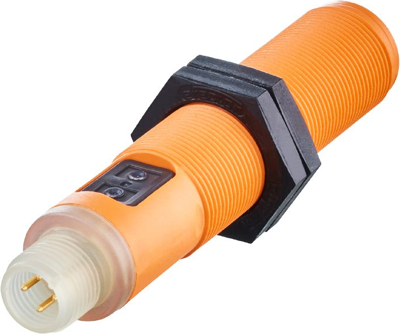

KG5066 IFM electronic Proximity Switches, Reed switches Image 2

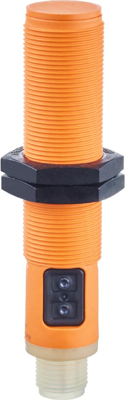

KG5066 IFM electronic Proximity Switches, Reed switches Image 3
Image may differ
Unit Price (€ / pc.)
192.8157 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
192.82 € *
Price list
Quantity
Price per unit*
1 pcs.
192.8157 €
3 pcs.
187.7582 €
*incl. VAT plus shipping costs
**Subject to prior sale

Capacitive sensor, KG5066, IFM electronic

Features

  • Output function normally open / normally closed programmable
  • Clearly visible indication of the switching status
  • Easy adjustment to the empty and full state via pushbutton
  • Resistant to electrostatic discharge
Technical specifications
Connection M12-Steckverbinder
Version PNP, IO-Link
Detecting distance 12 mm
Length 87 mm
Assembly Einbaumontage M18, nicht bündig
Product type Kapazitiver Sensor
Latching switching function 1 Schließer + 1 Öffner
Switching Voltage (DC) 36 V
switching current 200 mA
Degree of protection (IP) IP65/IP67
Logistics
Country of origin DE
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
