KG5304 | IFM electronic

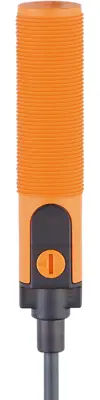

Capacitive sensor, PNP, IO-Link, flush mounting M18, quasi-flush, 1 Form B (N/C), 30 V (DC), 200 mA, KG5304
Order No.: 82P6360
EAN: 4021179302609
MPN:
KG5304
Unit Price (€ / pc.)
142.9666 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
142.97 € *
Price list
Quantity
Price per unit*
1 pcs.
142.9666 €
3 pcs.
139.0158 €
5 pcs.
135.2792 €
*incl. VAT plus shipping costs
**Subject to prior sale
Capacitive sensor, KG5304, IFM electronic
Features
- Easily adjustable sensing range
- High protection rating for the requirements of harsh industrial environments
- Use in high medium temperatures
- For position detection or level monitoring
Technical specifications
| Anschluss | Kabel, PUR 3x0,34 mm², 2 m | |
| Ausführung | PNP, IO-Link | |
| Erfassungsabstand | 0,5-9 mm | |
| Länge | 92.5 mm | |
| Montage | Einbaumontage M18, quasibündig | |
| Produkt-Art | Kapazitiver Sensor | |
| Schaltfunktion | 1 Öffner | |
| Schaltspannung (DC) | 30 V | |
| Schaltstrom | 200 mA | |
| Schutzart (IP) | IP65/IP67/IP69K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
