KG6001 | IFM electronic
Capacitive sensor, PNP, IO-Link, flush mounting M18, not flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 200 mA, KG6001
Order No.: 82P6369
EAN: 4021179307024
MPN:
KG6001
Unit Price (€ / pc.)
166.4334 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
166.43 € *
Price list
Quantity
Price per unit*
1 pcs.
166.4334 €
3 pcs.
161.8400 €
5 pcs.
157.4846 €
*incl. VAT plus shipping costs
**Subject to prior sale

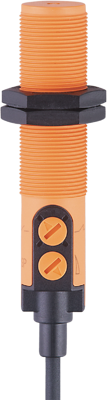

Capacitive sensor, KG6001, IFM electronic
Features
- Easily adjustable sensing range
- With signal display for a perfect switch point
- High protection rating for the requirements of harsh industrial environments
- Use in high medium temperatures
- For position detection or level monitoring
Technical specifications
| Anschluss | Kabel, PUR 3x0,34 mm², 2 m | |
| Ausführung | PNP, IO-Link | |
| Erfassungsabstand | 0,5-30 mm | |
| Länge | 92.5 mm | |
| Montage | Einbaumontage M18, nicht bündig | |
| Produkt-Art | Kapazitiver Sensor | |
| Schaltfunktion | 1 Schließer + 1 Öffner | |
| Schaltspannung (DC) | 30 V | |
| Schaltstrom | 200 mA | |
| Schutzart (IP) | IP65/IP67/IP69K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
