KI0065 | IFM electronic
Capacitive sensor, PBT, flush mounting M30, not flush, 1 Form A (N/O), 250 V (DC), 200 mA, KI0065
Order No.: 82P6382
EAN: 4021179322294
MPN:
KI0065
Unit Price (€ / pc.)
254.5291 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
254.53 € *
Price list
Quantity
Price per unit*
1 pcs.
254.5291 €
3 pcs.
247.8532 €
*incl. VAT plus shipping costs
**Subject to prior sale

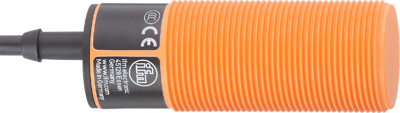

Capacitive sensor, KI0065, IFM electronic
Features
- Easy setting of the sensing range via potentiometer
- With combined AC/DC output stage
- Two-wire technology
- High noise immunity
- For position detection or level monitoring
Technical specifications
| Connection | Kabel, PVC 2x0,5 mm², 6 m | |
| Version | PBT | |
| Detecting distance | 15 mm | |
| Length | 81 mm | |
| Assembly | Einbaumontage M30, nicht bündig | |
| Product type | Kapazitiver Sensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 250 V | |
| switching current | 200 mA | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
