M9H211 | IFM electronic
Position sensor, PNP/NPN, flush mounting M11, flush, 1 Form A (N/O), 36 V (DC), 100 mA, M9H211
Order No.: 82P6547
EAN: 4021179322010
MPN:
M9H211
Unit Price (€ / pc.)
245.6279 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
245.63 € *
Price list
Quantity
Price per unit*
1 pcs.
245.6279 €
3 pcs.
239.1900 €
*incl. VAT plus shipping costs
**Subject to prior sale

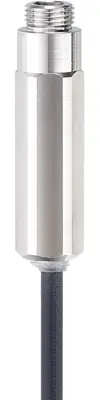

Position sensor, M9H211, IFM electronic
Features
- Pressure-resistant up to 350 bar
- Designed for use in plunger detection
- Compact and robust stainless steel housing
- Spanner flat for easy mounting
- High shock and vibration resistance for mobile applications
Technical specifications
| Connection | Kabel, PUR 2x0,34 mm², 2 m/M12-Steckverbinder | |
| Version | PNP/NPN | |
| Length | 56.5 mm | |
| Assembly | Einbaumontage M11, bündig | |
| Product type | Positionssensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (DC) | 36 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
