MFH207 | IFM electronic

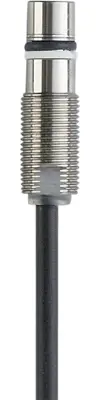

MFH207, Cylinder sensor, M12 x 1 / L = 41 mm, Sensinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6560
EAN: 4021179297165
MPN:
MFH207
Unit Price (€ / pc.)
164.4342 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
164.43 € *
Price list
Quantity
Price per unit*
1 pcs.
164.4342 €
3 pcs.
159.8884 €
5 pcs.
155.5925 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cylinder sensor, MFH207, IFM electronic
Features
- For position feedback on hydraulic cylinders
- Pressure-resistant up to 500 bar
- Metal sensing face for heavy duty
- High bursting pressure
- Lifespan of more than 10 million pressure cycles
Technical specifications
| Connection | cable connection 2 m | |
| Detection range | 1.8 mm | |
| Assembly | flush mounting | |
| Latching switching function | 1 Form B (N/C) | |
| Switching Voltage (DC) | 36 V | |
| switching current | 200 mA | |
| Degree of protection (IP) | IP65/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
