MK5111 | IFM electronic
Cylinder sensor, with GMR cell, flush mounting, flush, 1 Form A (N/O), 30 V (DC), 100 mA, MK5111
Order No.: 82P6593
EAN: 4021179151375
MPN:
MK5111
Unit Price (€ / pc.)
77.2310 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
77.23 € *
Price list
Quantity
Price per unit*
1 pcs.
77.2310 €
3 pcs.
73.8990 €
5 pcs.
70.8288 €
*incl. VAT plus shipping costs
**Subject to prior sale

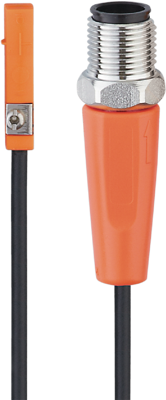

Cylinder sensor, MK5111, IFM electronic
Features
- High protection rating for the requirements of the food and beverage industry
- Self-locking fixture for quick mounting and easy adjustment
- Easy fit 'drop from the top' into a slot
- Moulded cable ensuring very good strain relief
- Wide operating temperature range
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | mit GMR-Zelle | |
| Length | 25 mm | |
| Assembly | Einbaumontage, bündig | |
| Product type | T-Nut-Zylindersensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP67/IP69K |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
