MK5305 | IFM electronic
Cylinder sensor, with GMR cell, flush mounting, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, MK5305
Order No.: 82P6629
EAN: 4021179151757
MPN:
MK5305
Unit Price (€ / pc.)
86.9771 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
86.98 € *
Price list
Quantity
Price per unit*
1 pcs.
86.9771 €
3 pcs.
83.2048 €
5 pcs.
79.7538 €
*incl. VAT plus shipping costs
**Subject to prior sale

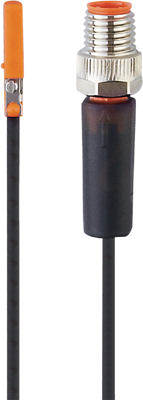

Cylinder sensor, MK5305, IFM electronic
Features
- Self-locking fixture for quick mounting and easy adjustment
- Easy fit 'drop from the top' into a slot
- Moulded cable ensuring very good strain relief
- Clearly visible indication of the switching status
- Short housing for installation in short-stroke cylinders and small grippers
Technical specifications
| Anschluss | M8-Steckverbinder | |
| Ausführung | mit GMR-Zelle | |
| Länge | 17.5 mm | |
| Montage | Einbaumontage, nicht bündig | |
| Produkt-Art | C-Nut-Zylindersensor | |
| Schaltfunktion | 1 Schließer | |
| Schaltspannung (DC) | 30 V | |
| Schaltstrom | 100 mA | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
