MK5328 | IFM electronic
Cylinder sensor, with AMR cell, flush mounting, flush, 1 Form A (N/O), 30 V (DC), 100 mA, MK5328
Order No.: 82P6642
EAN: 4021179239790
MPN:
MK5328
Unit Price (€ / pc.)
81.9553 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
81.96 € *
Price list
Quantity
Price per unit*
1 pcs.
81.9553 €
3 pcs.
78.4091 €
5 pcs.
75.1485 €
*incl. VAT plus shipping costs
**Subject to prior sale

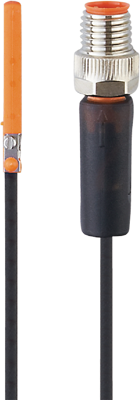

Cylinder sensor, MK5328, IFM electronic
Features
- Exact position detection thanks to very small hysteresis
- For exact switch point detection on short-stroke cylinders
- Very high switching frequency
- Self-locking fixture for quick mounting and easy adjustment
- Easy fit 'drop from the top' into a slot
Technical specifications
| Connection | Kabel, PUR, 0,3 m/M8-Steckverbinder | |
| Version | mit AMR-Zelle | |
| Length | 25.8 mm | |
| Assembly | Einbaumontage, bündig | |
| Product type | C-Nut-Zylindersensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
