MK5902 | IFM electronic
Cylinder sensor, with AMR cell, flush mounting, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, MK5902
Order No.: 82P6652
EAN: 4021179255721
MPN:
MK5902
Unit Price (€ / pc.)
74.2084 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
74.21 € *
Price list
Quantity
Price per unit*
1 pcs.
74.2084 €
3 pcs.
71.0073 €
5 pcs.
68.0561 €
*incl. VAT plus shipping costs
**Subject to prior sale

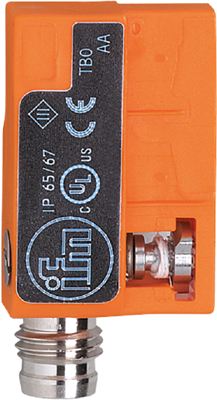

Cylinder sensor, MK5902, IFM electronic
Features
- Self-locking fixture for quick mounting and easy adjustment
- Easy fit 'drop from the top' into a slot
- Fast wiring due to integrated M8 connector
- Exact position detection thanks to very small hysteresis
- Very high switching frequency
Technical specifications
| Connection | M8-Steckverbinder | |
| Version | mit AMR-Zelle | |
| Length | 27.5 mm | |
| Assembly | Einbaumontage, nicht bündig | |
| Product type | T-Nut-Zylindersensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
