E11418 | IFM electronic

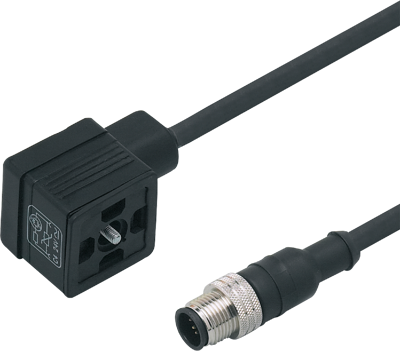

Sensor actuator cable, M12 cable plug, straight, A to valve connector DIN form A, angled, 3 pole/4 pole, 1 m, PUR, black, 3 A, E11418
Order No.: 82P1706
EAN: 4021179035958
MPN:
E11418
Unit Price (€ / pc.)
39.4247 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
39.42 € *
Price list
Quantity
Price per unit*
1 pcs.
39.4247 €
3 pcs.
37.7230 €
5 pcs.
36.1522 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connection cable, E11418, IFM electronic
Features
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Clearly visible LED for switching status indication
- With integrated protective circuitry
Technical specifications
| Connection (1) | M12-Kabelstecker, gerade, A | |
| Connection (2) | Ventilsteckverbinder DIN form A, abgewinkelt | |
| Pin number | 3-polig/4-polig | |
| Cable length | 1 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | Yes | |
| max. Voltage | 24 V | |
| Rated current | 3 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
