EVC617 | IFM electronic

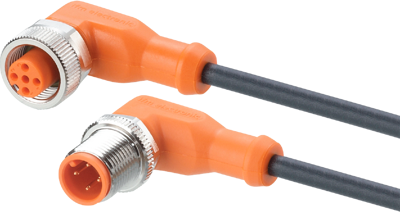

Sensor actuator cable, M12 cable plug, angled, A to M12 cable socket, angled, A, 4 pole/5 pole, 3 m, PUR, black, 4 A, EVC617
Order No.: 82P3783
EAN: 4021179288194
MPN:
EVC617
Unit Price (€ / pc.)
40.4600 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
40.46 € *
Price list
Quantity
Price per unit*
1 pcs.
40.4600 €
3 pcs.
38.7107 €
5 pcs.
37.0923 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connection cable, EVC617, IFM electronic
Features
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Connection (1) | M12-Kabelstecker, abgewinkelt, A | |
| Connection (2) | M12-Kabeldose, abgewinkelt, A | |
| Pin number | 4-polig/5-polig | |
| Cable length | 3 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| LED display | No | |
| max. Voltage | 300 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
