EVC953 | IFM electronic

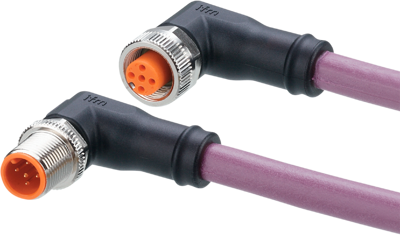

Sensor actuator cable, M12 cable plug, angled, A to M12 cable socket, angled, A, 5 pole/5 pole, 1 m, PUR, purple, 4 A, EVC953
Order No.: 82P3981
EAN: 4021179339131
MPN:
EVC953
Unit Price (€ / pc.)
72.4829 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
72.48 € *
Price list
Quantity
Price per unit*
1 pcs.
72.4829 €
3 pcs.
69.3413 €
5 pcs.
66.4615 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connection cable, EVC953, IFM electronic
Features
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Large cable cross-section for reducing the voltage drop
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Anschluss (1) | M12-Kabelstecker, abgewinkelt, A | |
| Anschluss (2) | M12-Kabeldose, abgewinkelt, A | |
| Polzahl | 5-polig/5-polig | |
| Kabellänge | 1 m | |
| Farbe | violett | |
| Material | PUR | |
| Schutzart (IP) | IP67/IP68/IP69K | |
| LED-Anzeige | No | |
| max. Spannung | 36 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
