EVC957 | IFM electronic

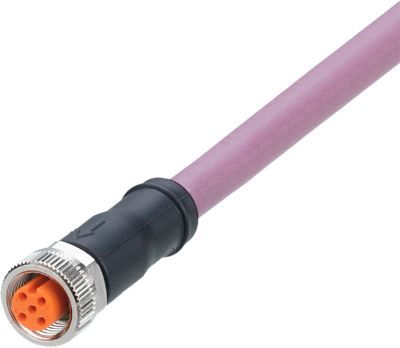

Sensor actuator cable, M12 cable socket, straight, A to open end, 5 pole, 2 m, PUR, purple, 4 A, EVC957
Order No.: 82P3986
EAN: 4021179339179
MPN:
EVC957
Unit Price (€ / pc.)
71.2810 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
71.28 € *
Price list
Quantity
Price per unit*
1 pcs.
71.2810 €
3 pcs.
68.1989 €
5 pcs.
65.3667 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connecting cable, EVC957, IFM electronic
Features
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Big cable cross-section to reduce the voltage drop and terminating resistor to avoid interference
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Anschluss (1) | M12-Kabeldose, gerade, A | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 5-polig | |
| Kabellänge | 2 m | |
| Farbe | violett | |
| Material | PUR | |
| Schutzart (IP) | IP67/IP68/IP69K | |
| LED-Anzeige | No | |
| max. Spannung | 32 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
