EVCA13 | IFM electronic

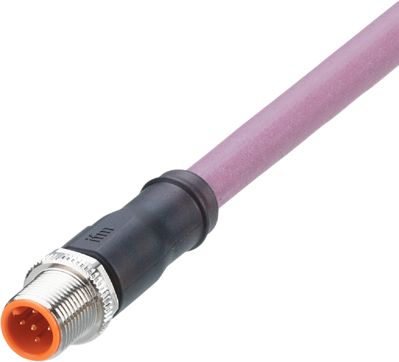

Sensor actuator cable, M12 cable plug, straight, A to open end, 5 pole, 0.3 m, PUR, purple, 4 A, EVCA13
Order No.: 82P4026
EAN: 4021179339285
MPN:
EVCA13
Unit Price (€ / pc.)
47.5524 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
47.55 € *
Price list
Quantity
Price per unit*
1 pcs.
47.5524 €
3 pcs.
45.4818 €
5 pcs.
43.6135 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connecting cable, EVCA13, IFM electronic
Features
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Large cable cross-section for reducing the voltage drop
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade, A | |
| Anschluss (2) | offenes Ende | |
| Farbe | violett | |
| Kabellänge | 0.3 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 36 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67/IP68/IP69K |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
