EVF693 | IFM electronic
EVF693, Y connection cable, 2, 1 m, MPPE, IP 65, Iinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P4338
EAN: 4021179312899
MPN:
EVF693
Unit Price (€ / pc.)
75.2437 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
75.24 € *
Price list
Quantity
Price per unit*
1 pcs.
75.2437 €
3 pcs.
71.9950 €
5 pcs.
69.0081 €
*incl. VAT plus shipping costs
**Subject to prior sale

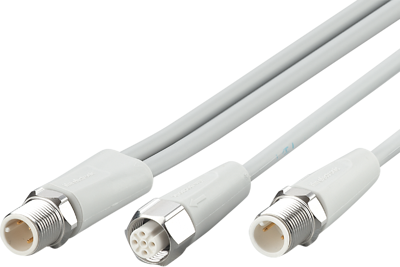

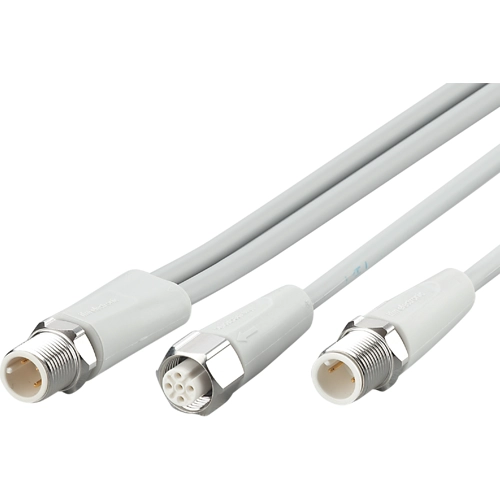

Y connection cable, EVF693, IFM electronic
Features
- For use in hygienic and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Cable sheath made of halogen-free and flame-retardant material
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Large operating temperature range and high protection rating
Technical specifications
| Connection (1) | M12 cable plug, straight, A | |
| Connection (2) | M12 cable socket, straight, A/M12 cable plug, straight, A | |
| Colour | gray | |
| Cable length | 1 m | |
| LED display | No | |
| Material | mPPE | |
| max. Voltage | 24 V | |
| Rated current | 4 A | |
| Pin number | 5 pole/3 pole | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
