EVT006 | IFM electronic

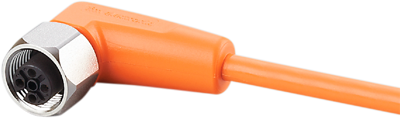

Sensor actuator cable, M12 cable socket, angled, A to open end, 5 pole, 25 m, PVC, orange, 4 A, EVT006
Order No.: 82P4402
EAN: 4021179231022
MPN:
EVT006
Unit Price (€ / pc.)
64.8788 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
64.88 € *
Price list
Quantity
Price per unit*
1 pcs.
64.8788 €
3 pcs.
62.0585 €
5 pcs.
59.4881 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connecting cable, EVT006, IFM electronic
Features
- For use in hygienic and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Large operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Anschluss (1) | M12-Kabeldose, abgewinkelt, A | |
| Anschluss (2) | offenes Ende | |
| Farbe | orange | |
| Kabellänge | 25 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 300 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP65/IP67/IP68/IP69K |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
