EVT098 | IFM electronic
EVT098, Connection cable, Operating voltage < 250infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P4480
EAN: 4021179245203
MPN:
EVT098
Unit Price (€ / pc.)
77.1953 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
77.20 € *
Price list
Quantity
Price per unit*
1 pcs.
77.1953 €
3 pcs.
73.8514 €
5 pcs.
70.7931 €
*incl. VAT plus shipping costs
**Subject to prior sale

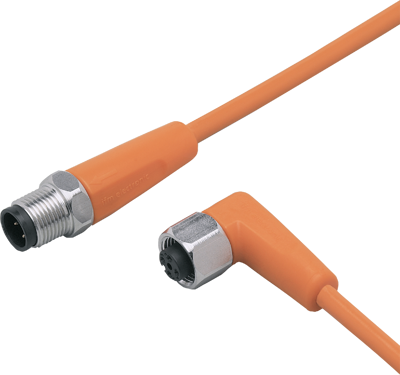

Connection cable, EVT098, IFM electronic
Features
- For use in hygienic and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Large operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade, A | |
| Anschluss (2) | M12-Kabeldose, abgewinkelt, A | |
| Farbe | orange | |
| Kabellänge | 15 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 300 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig/4-polig | |
| Schutzart (IP) | IP65/IP67/IP68/IP69K |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
