EVT350 | IFM electronic

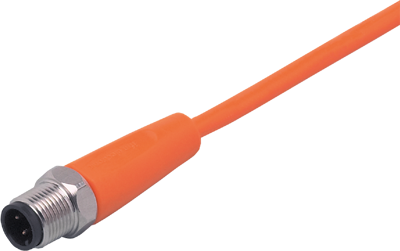

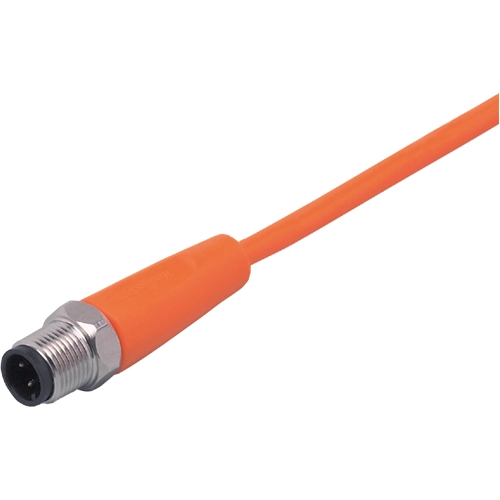

Sensor actuator cable, M12 cable plug, straight, A to open end, 4 pole, 25 m, PVC, orange, 4 A, EVT350
Order No.: 82P4718
EAN: 4021179269162
MPN:
EVT350
Unit Price (€ / pc.)
64.2719 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
64.27 € *
Price list
Quantity
Price per unit*
1 pcs.
64.2719 €
3 pcs.
61.4873 €
5 pcs.
58.9288 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connecting cable, EVT350, IFM electronic
Features
- For use in hygienic and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Large operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Connection (1) | M12-Kabelstecker, gerade, A | |
| Connection (2) | offenes Ende | |
| Pin number | 4-polig | |
| Cable length | 25 m | |
| Colour | orange | |
| Material | PVC | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| LED display | No | |
| max. Voltage | 300 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
