EVW036 | IFM electronic
EVW036, Connection cable, Operating voltage < 250infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P4869
EAN: 4021179242196
MPN:
EVW036
Unit Price (€ / pc.)
37.1399 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
37.14 € *
Price list
Quantity
Price per unit*
1 pcs.
37.1399 €
3 pcs.
35.5334 €
5 pcs.
34.0578 €
*incl. VAT plus shipping costs
**Subject to prior sale

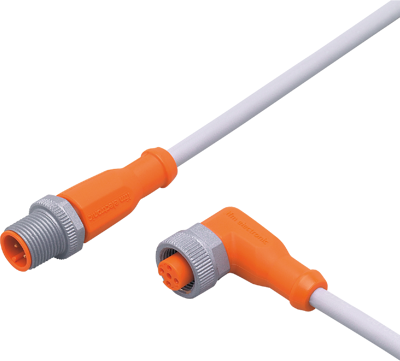

Connection cable, EVW036, IFM electronic
Features
- Weld-slag resistant PUR cable with drag chain suitability
- Nut with special weld-slag resistant coating
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade, A | |
| Anschluss (2) | M12-Kabeldose, abgewinkelt, A | |
| Farbe | grau | |
| Kabellänge | 0.3 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 300 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig/4-polig | |
| Schutzart (IP) | IP65/IP67/IP68/IP69K |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
