AL1401 | IFM electronic

Sensor-actuator distributor, PROFINET, 8 x M12, AL1401

Order No.: 82P1334
EAN: 4021179322584
MPN:
AL1401
AL1401 IFM electronic Sensor-Actuator Distribution Boxes
Image may differ
Unit Price (€ / pc.)
675.3845 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
675.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
675.3845 €

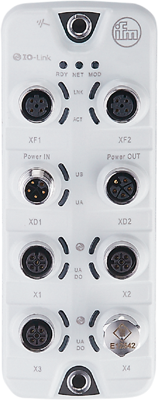

IO-Link master with PROFINET interface, AL1401, IFM electronic

Features

  • Daisy-chain power supply with standardised L-coded M12 connection technology
  • Configurable current limitation for each port to ensure safe operation
  • Voltage and current measurement per port for energy monitoring
  • Connection of actuators up to 2 A
Technical specifications
Bus Output 8 x M12 (5-polig, D-kodiert)
Bus Input 4 x M12 (5-polig, D-kodiert)
IO Ports 8 x M12
Power Input M12
Protocol PROFINET
Degree of protection (IP) IP65/IP66/IP67/IP69K
Logistics
Country of origin PL
Customs tariff number 85176200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
