AL1420 | IFM electronic

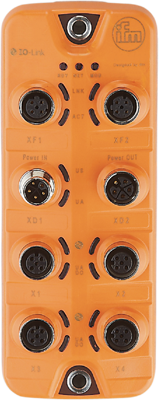

Sensor-actuator distributor, ethernet/IP, 8 x M12, AL1420

Order No.: 82P1337
EAN: 4021179322591
MPN:
AL1420
AL1420 IFM electronic Sensor-Actuator Distribution Boxes
Image may differ
Unit Price (€ / pc.)
608.5303 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
608.53 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
608.5303 €

IO-Link master with EtherNet/IP interface, AL1420, IFM electronic

Features

  • Daisy-chain power supply with standardised L-coded M12 connection technology
  • Configurable current limitation for each port to ensure safe operation
  • Voltage and current measurement per port for energy monitoring
  • Connection of actuators up to 2 A
Technical specifications
Bus Ausgang 8 x M12 (5-polig, D-kodiert)
Bus Eingang 4 x M12 (5-polig, D-kodiert)
IO Ports 8 x M12
Leistungsanschluss M12
Protokoll Ethernet/IP
Schutzart (IP) IP65/IP66/IP67
Logistics
Ursprungsland PL
Zolltarifnummer 85176200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
