TW2101 | IFM electronic
TW2101, Infrared temperature sensor, PNP, switchininfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8664
EAN: 4021179311700
MPN:
TW2101
Unit Price (€ / pc.)
2,636.4807 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
2,636.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,636.4807 €

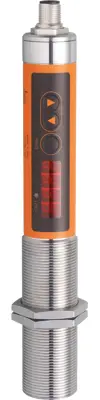

Infrared temperature sensor, TW2101, IFM electronic
Features
- Reliable, non-contact temperature measurement of objects with very high temperatures
- For applications in the steel and glass industries
- Intuitive setting of analogue output and switching output via pushbutton
- Clearly visible display for showing the current temperature
- Robust housing and scratch-resistant precision lens for use in harsh industrial environments
- LED pilot light for alignment and control
Technical specifications
| Number of pins | 2 | |
| Version | Infrarot-Temperatursensor | |
| Function | temperature measurement | |
| Accuracy | ±0.5 % | |
| max. operating temperature | 80 °C | |
| measurement range | 250 to 1600 °C | |
| min. operating temperature | -20 °C | |
| Assembly | screw mounting | |
| Interfaces | IO-Link | |
| Voltage | 18-32 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90251900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
