TW7001 | IFM electronic
TW7001, Infrared temperature sensor, M30 x 1.5 / Linfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8666
EAN: 4021179269834
MPN:
TW7001
Unit Price (€ / pc.)
1,633.3107 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,633.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,633.3107 €

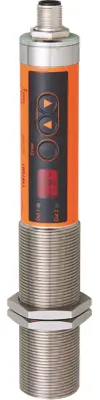

Infrared temperature sensor, TW7001, IFM electronic
Features
- Reliable, non-contact detection of objects with very high temperatures
- For applications in the steel and glass industries
- Intuitive setting of the switching temperature via pushbutton and display
- Switch points of the two switching outputs can be adjusted independently
- Robust housing and scratch-resistant precision lens for use in harsh industrial environments
Technical specifications
| Number of pins | 2 | |
| Version | Infrarot-Temperatursensor | |
| Function | temperature measurement | |
| Accuracy | ±1 % | |
| max. operating temperature | 80 °C | |
| measurement range | 250 to 1250 °C | |
| min. operating temperature | -20 °C | |
| Assembly | screw mounting | |
| Voltage | 10-34 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90251900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
