TW7011 | IFM electronic
TW7011, Infrared temperature sensor, M30 x 1.5 / Linfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8667
EAN: 4021179269841
MPN:
TW7011
Unit Price (€ / pc.)
1,601.9304 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,601.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,601.9304 €

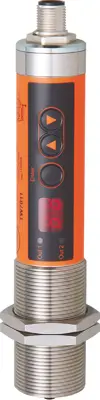

Infrared temperature sensor, TW7011, IFM electronic
Features
- Reliable, non-contact detection of objects with very high temperatures
- For applications in the steel and glass industries
- Intuitive setting of the switching temperature via pushbutton and display
- Switch points of the two switching outputs can be adjusted independently
- With fibre optics and measuring head for use where space is restricted
Technical specifications
| Number of pins | 2 | |
| Version | Infrarot-Temperatursensor | |
| Function | temperature measurement | |
| Accuracy | ±1 % | |
| max. operating temperature | 80 °C | |
| measurement range | 350 to 1350 °C | |
| min. operating temperature | -20 °C | |
| Assembly | screw mounting | |
| Voltage | 10-34 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90251900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
