TA2145 | IFM electronic

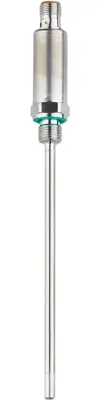

Temperature transmitter, IO-Link, analog signal, rod length 137 mm, -50 to 150 °C, Ø 18.7 mm, Pt1000 sensor, TA2145
Order No.: 82P8440
EAN: 4021179279772
MPN:
TA2145
Unit Price (€ / pc.)
281.8158 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
281.82 € *
Price list
Quantity
Price per unit*
1 pcs.
281.8158 €
3 pcs.
274.4378 €
*incl. VAT plus shipping costs
**Subject to prior sale
Temperature transmitter, TA2145, IFM electronic
Features
- High precision across the entire temperature measurement range
- Particularly good response dynamics and very short power-on delay time
- Robust stainless steel housing with very high pressure rating
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Produkt-Art | Temperaturtransmitter | |
| Ausführung | IO-Link, Analogsignal, Stablänge 137 mm | |
| Technologie | Pt1000 Sensor | |
| min. Temperatur | -50 °C | |
| max. Temperatur | 150 °C | |
| Durchmesser | 18.7 mm | |
| Anschluss | M12-Steckverbinder | |
| Montage | G 1/4 Außengewinde |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 90251900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
