TCC911 | IFM electronic
Temperature transmitter, IO-Link, analog signal, PNP/NPN, rod length 50 mm, -25 to 160 °C, Ø 50 mm, Pt1000 sensor, TCC911
Order No.: 82P8508
EAN: 4021179322386
MPN:
TCC911
Unit Price (€ / pc.)
656.8562 € *
Available: 0 pcs.
Leadtime: 1 Week **

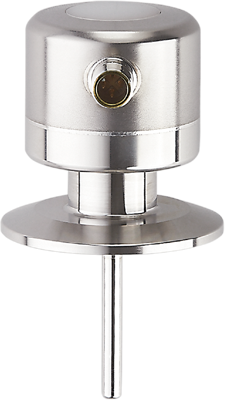

Temperature transmitter, TCC911, IFM electronic
Features
- Immediate notification of deviations in accuracy
- Improved quality assurance in between calibration intervals
- Robust design for permanently precise measurements even in demanding environments
- Transparent sensor monitoring thanks to logging of the diagnostic values
- Simulation function simplifies installation
Technical specifications
Produkt-Art | Temperaturtransmitter | |
Ausführung | IO-Link, Analogsignal, PNP/NPN, Stablänge 50 mm | |
Technologie | Pt1000 Sensor | |
min. Temperatur | -25 °C | |
max. Temperatur | 160 °C | |
Durchmesser | 50 mm | |
Anschluss | M12-Steckverbinder | |
Montage | Klemme DN50 |
Download
Logistics
Ursprungsland | US |
Zolltarifnummer | 90251900 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
