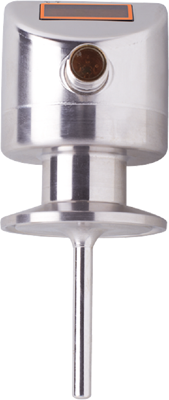

TD2801 | IFM electronic
Temperature transmitter, with display, IO-Link, analog signal, rod length 30 mm, -50 to 150 °C, Ø 50.5 mm, Pt1000 sensor, TD2801
Order No.: 82P8532
EAN: 4021179274340
MPN:
TD2801
Unit Price (€ / pc.)
389.8321 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
389.83 € *
Price list
Quantity
Price per unit*
1 pcs.
389.8321 €
3 pcs.
380.0146 €
*incl. VAT plus shipping costs
**Subject to prior sale
Temperature transmitter, TD2801, IFM electronic
Features
- Hygienic design for the requirements of the food and beverage industry
- Particularly good response dynamics and very short power-on delay time
- Clearly visible 4-digit LED display
- High protection and pressure rating
Technical specifications
| Produkt-Art | Temperaturtransmitter | |
| Ausführung | mit Display, IO-Link, Analogsignal, Stablänge 30 mm | |
| Technologie | Pt1000 Sensor | |
| min. Temperatur | -50 °C | |
| max. Temperatur | 150 °C | |
| Durchmesser | 50.5 mm | |
| Anschluss | M12-Steckverbinder | |
| Montage | Klemme DN25-40 |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 90251900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
