TM4341 | IFM electronic

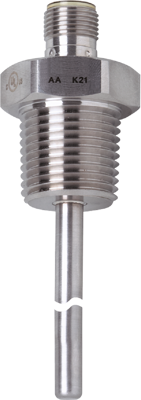

Temperature sensor, rod length 142 mm, -40 to 150 °C, Ø 30 mm, Pt100 sensor, TM4341
Order No.: 82P8565
EAN: 4021179262507
MPN:
TM4341
Unit Price (€ / pc.)
175.4893 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
175.49 € *
Price list
Quantity
Price per unit*
1 pcs.
175.4893 €
3 pcs.
170.8959 €
*incl. VAT plus shipping costs
**Subject to prior sale
Temperature sensor, TM4341, IFM electronic
Features
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Very short response time for use in processes with fast temperature fluctuations
- Robust stainless steel housing with high protection rating and high pressure rating
- Variable process connection using adapters
Technical specifications
| Produkt-Art | Temperatursensor | |
| Ausführung | Stablänge 142 mm | |
| Technologie | Pt100 Sensor | |
| min. Temperatur | -40 °C | |
| max. Temperatur | 150 °C | |
| Durchmesser | 30 mm | |
| Anschluss | M12-Steckverbinder | |
| Montage | 1/2" NPT Außengewinde |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
