TM6101 | IFM electronic

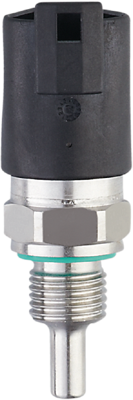

Temperature probe, rod length 12 mm, -40 to 150 °C, Ø 25.4 mm, Pt1000 sensor, TM6101
Order No.: 82P8587
EAN: 4021179297837
MPN:
TM6101
Unit Price (€ / pc.)
165.7551 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
165.76 € *
Price list
Quantity
Price per unit*
1 pcs.
165.7551 €
3 pcs.
161.1617 €
5 pcs.
156.8301 €
*incl. VAT plus shipping costs
**Subject to prior sale
Temperature sensor, TM6101, IFM electronic
Features
- High precision across the entire temperature measurement range
- DEUTSCH connector for the fast and easy connection to the on-board system
- Particularly good response dynamics and very short power-on delay time
- Robust stainless steel housing with very high pressure rating
- High protection rating for the requirements of mobile machines
Technical specifications
| Product type | Temperatursensor | |
| Version | Stablänge 12 mm | |
| Technology | Pt1000 Sensor | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C | |
| diameter | 25.4 mm | |
| Connection | DT04-3P | |
| Assembly | G 1/4 Außengewinde |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
