TN2445 | IFM electronic

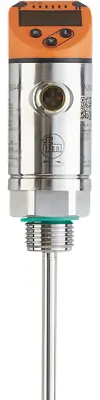

Temperature probe, with display, IO-Link, analog signal, PNP/NPN, rod length 133.2 mm, -50 to 150 °C, Ø 34 mm, Pt1000 sensor, TN2445
Order No.: 82P8594
EAN: 4021179297936
MPN:
TN2445
Unit Price (€ / pc.)
545.9125 € *
Available: 0 pcs.
Leadtime: 1 Week **
Electronic temperature sensor, TN2445, IFM electronic
Features
- Very large temperature evaluation range
- With switching output, analogue signal and IO-Link
- Intuitive and user-friendly 3-pushbutton control
- Red/green display for clear identification of the acceptable range
- Clearly visible LEDs for switching status indication
Technical specifications
| Product type | Temperatursensor | |
| Version | mit Display, IO-Link, Analogsignal, PNP/NPN, Stablänge 133,2 mm | |
| Technology | Pt1000 Sensor | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C | |
| diameter | 34 mm | |
| Connection | M12-Steckverbinder | |
| Assembly | G 1/2 Außengewinde |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 90251900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
