TN2511 | IFM electronic

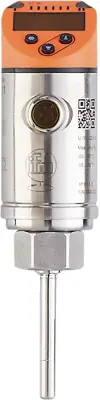

Temperature probe, with display, IO-Link, analog signal, PNP/NPN, rod length 45 mm, -50 to 150 °C, Ø 34 mm, Pt1000 sensor, TN2511
Order No.: 82P8595
EAN: 4021179294263
MPN:
TN2511
Unit Price (€ / pc.)
564.417 € *
Available: 0 pcs.
Leadtime: 1 Week **
Electronic temperature sensor, TN2511, IFM electronic
Features
- Very large temperature evaluation range
- Programmable switching output with IO-Link and scalable analogue output
- Intuitive and user-friendly 3-pushbutton control
- Red/green display for clear identification of the acceptable range
- Clearly visible LEDs for switching status indication
Technical specifications
| Product type | Temperatursensor | |
| Version | mit Display, IO-Link, Analogsignal, PNP/NPN, Stablänge 45 mm | |
| Technology | Pt1000 Sensor | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C | |
| diameter | 34 mm | |
| Connection | M12-Steckverbinder | |
| Assembly | M18 Innengewinde |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 90251900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
