TS2269 | IFM electronic

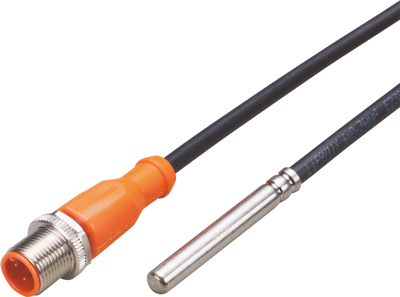

Temperature probe, cable, PUR, 2 m, rod length 50 mm, -40 to 90 °C, Ø 6 mm, Pt1000 sensor, TS2269
Order No.: 82P8609
EAN: 4021179292955
MPN:
TS2269
Unit Price (€ / pc.)
91.9870 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
91.99 € *
Price list
Quantity
Price per unit*
1 pcs.
91.9870 €
3 pcs.
89.4404 €
5 pcs.
87.0366 €
*incl. VAT plus shipping costs
**Subject to prior sale
Temperature sensor, TS2269, IFM electronic
Features
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Easy process adaptation via clamp fitting or protective tube
- High precision across the entire temperature measurement range
- Simple and 100% sealed connection via M12 connector
Technical specifications
| Product type | Temperatursensor | |
| Version | Kabel, PUR, 2 m, Stablänge 50 mm | |
| Technology | Pt1000 Sensor | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 90 °C | |
| diameter | 6 mm | |
| Connection | M12-Steckverbinder | |
| Assembly | Klemmadaption Ø 6 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
