TS2452 | IFM electronic

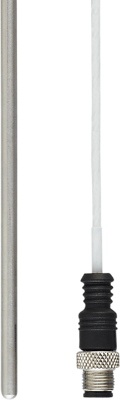

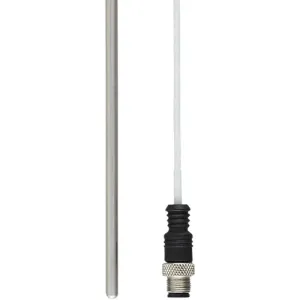

Temperature probe, cable, PTFE, 2 m, rod length 150 mm, -100 to 600 °C, Ø 6 mm, Pt100 sensor, TS2452
Order No.: 82P8612
EAN: 4021179294317
MPN:
TS2452
Unit Price (€ / pc.)
186.4730 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
186.47 € *
Price list
Quantity
Price per unit*
1 pcs.
186.4730 €
3 pcs.
181.5821 €
*incl. VAT plus shipping costs
**Subject to prior sale
Temperature sensor, TS2452, IFM electronic
Features
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Easy process adaptation via clamp fitting or protective tube
- Very large temperature measurement range
- Simple and 100% sealed connection via M12 connector
Technical specifications
| Product type | Temperatursensor | |
| Version | Kabel, PTFE, 2 m, Stablänge 150 mm | |
| Technology | Pt100 Sensor | |
| min. operating temperature | -100 °C | |
| max. operating temperature | 600 °C | |
| diameter | 6 mm | |
| Connection | M12-Steckverbinder | |
| Assembly | Klemmadaption Ø 6 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
