TT5050 | IFM electronic

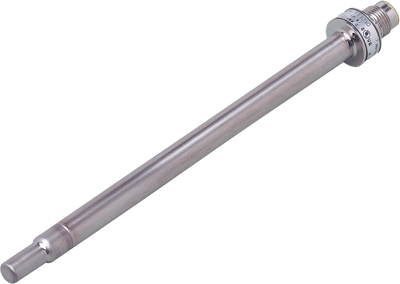

Temperature sensor, rod length 560 mm, -40 to 150 °C, Ø 10 mm, Pt1000 sensor, TT5050
Order No.: 82P8648
EAN: 4021179219136
MPN:
TT5050
Unit Price (€ / pc.)
194.7792 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
194.78 € *
Price list
Quantity
Price per unit*
1 pcs.
194.7792 €
3 pcs.
189.6741 €
*incl. VAT plus shipping costs
**Subject to prior sale
Temperature sensor, TT5050, IFM electronic
Features
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Very short response time for use in processes with fast temperature fluctuations
- Robust stainless steel housing with high protection rating and high pressure rating
- Variable process connection using adapters
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Stablänge 560 mm | |
| Durchmesser | 10 mm | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -40 °C | |
| Montage | Klemmadaption Ø 10 mm | |
| Produkt-Art | Temperatursensor | |
| Technologie | Pt1000 Sensor |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
