TT7281 | IFM electronic

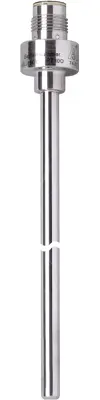

Temperature sensor, rod length 70 mm, -40 to 150 °C, Ø 6 mm, Pt100 sensor, TT7281
Order No.: 82P8651
EAN: 4021179281720
MPN:
TT7281
Unit Price (€ / pc.)
145.7036 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
145.70 € *
Price list
Quantity
Price per unit*
1 pcs.
145.7036 €
3 pcs.
141.6695 €
5 pcs.
137.8615 €
*incl. VAT plus shipping costs
**Subject to prior sale
Temperature sensor, TT7281, IFM electronic
Features
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Very short response time for use in processes with fast temperature fluctuations
- Robust stainless steel housing with high protection rating and high pressure rating
- Variable process connection using adapters
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | Stablänge 70 mm | |
| Durchmesser | 6 mm | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -40 °C | |
| Montage | Klemmadaption Ø 6 mm | |
| Produkt-Art | Temperatursensor | |
| Technologie | Pt100 Sensor |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
