UGT581 | IFM electronic
UGT581, ultrasonic diffuse reflection sensor, 53 xinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8718
EAN: 4021179298377
MPN:
UGT581
Unit Price (€ / pc.)
348.4439 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
348.44 € *
Price list
Quantity
Price per unit*
1 pcs.
348.4439 €
3 pcs.
339.6617 €
*incl. VAT plus shipping costs
**Subject to prior sale

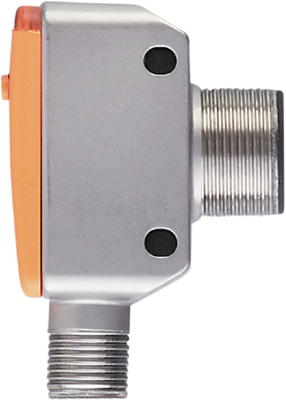

Ultrasonic diffuse reflection sensor, UGT581, IFM electronic
Features
- Robust rectangular metal housing with M18 thread on the side
- Particularly space-saving design for use where space is restricted
- With programmable switching output and scalable analogue output
- Non-contact detection independent of colour, transparency or surface characteristics of the object
- Intuitive setting of the detection range via pushbutton
Technical specifications
| Connection | M12-connector | |
| Activation time | 450 ms | |
| Detection range | 40-300 mm | |
| Switching frequency | 8 Hz | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| switching current | 35 mA | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
