UIT501 | IFM electronic
UIT501, ultrasonic diffuse reflection sensor, M30infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8736
EAN: 4021179321358
MPN:
UIT501
Unit Price (€ / pc.)
602.7112 € *
Available: 0 pcs.
Leadtime: 1 Week **

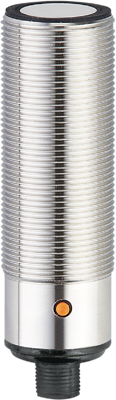

Ultrasonic diffuse reflection sensor, UIT501, IFM electronic
Features
- Very large detection range
- Intuitive setting of the detection range via pushbutton or IO-Link
- Clearly visible LED for indicating switching status and echo
- Output function normally open / normally closed programmable
- Non-contact detection independent of colour, transparency or surface characteristics of the object
Technical specifications
| Connection | M12-connector | |
| Activation time | 600 ms | |
| Detection range | 250-3500 mm | |
| Switching frequency | 1 Hz | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| switching current | 30 mA | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
