BUV46-T | Inchange Semiconductor

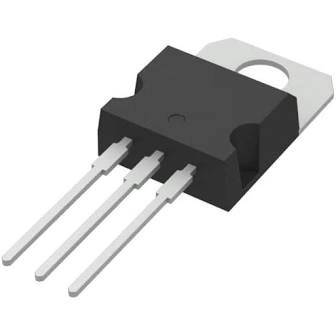

Bipolar junction transistor, NPN, 5 A, 400 V, THT, TO-220, BUV46-T
Unit Price (€ / pc.)
2.3562 € *
Available: 97 pcs.
Leadtime: On Request **
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
10 pcs.
1.6898 €
100 pcs.
1.4399 €
500 pcs.
1.2614 €
1000 pcs.
1.1424 €
*incl. VAT plus shipping costs
**Subject to prior sale
NPN power transistor, BUV46-T, ISC
This silicon NPN power transistor is designed for general purpose switching, switch mode power supplies, electronic ballasts for fluorescent lighting.
Features
- With TO-220C package
- High voltage
- Fast switching
Technical specifications
| Version | NPN | |
| Enclosure | TO-220 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 850 V | |
| max.voltage between collector and emitter Vceo | 400 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Rated current | 6 A | |
| Power dissipation | 70 W | |
| Collector current | 5 A |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85412900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
