BTF500601TEAAUMA1 | Infineon Technologies
BTF500601TEAAUMA1
Order No.: 88S7677
EAN: 4099879035639
MPN:
BTF500601TEAAUMA1
SP000629444
Unit Price (€ / pc.)
2.6537 € *
Available: 0 pcs.
Leadtime: On Request **
High side switch, BTF500601TEAAUMA1, Infineon Technologies
The BTF500601TEAAUMA1 is a single channel smart high-side power switch. It is based on smart power chip technology with a P-channel vertical power MOSFET that provides protective and diagnostic functions.
Features
- Optimized for PWM frequencies
- Advanced analog load currrent sense signal
- Designed for easy current sense calibration
- Overtemperature protection
Applications
- Driving all types of resistive, inductive and capacitive loads
- Most suitable for driving loads with PWM frequency from 0Hz
- Drives valves, coils and motors with high inrush current
Technical specifications
| Number of channels | 1 | |
| Version | P-channel | |
| drain-source on resistance RDS (on) @ Tj = 25°C max | 6 mΩ | |

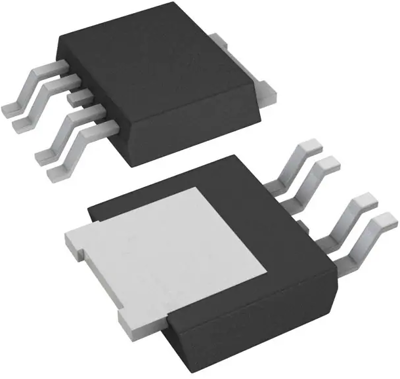

| Enclosure | TO-252 | |
| max. Voltage | 28 V | |
| Max. current | 13.5 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Download
Logistics
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
