ITS724GFUMA1 | Infineon Technologies

MOSFET NFET ITS724G

Order No.: 24S3630
EAN: 4099879035516
MPN:
ITS724GFUMA1
SP000219835
Series: ITS
Infineon Technologies
ITS724GFUMA1 Infineon Technologies High Side Switches

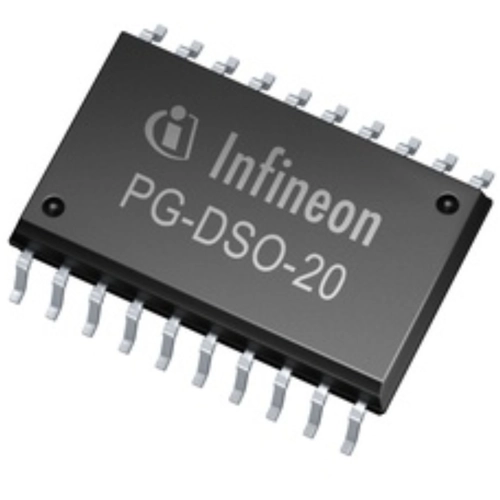

Image may differ
Unit Price (€ / pc.)
3.2249 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
3.2249 €

High side switch, ITS724GFUMA1, Infineon Technologies

The ITS724GFUMA1 is a vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in smart SIPMOS technology.

Features

  • Overload protection
  • Current limitation
  • Short circuit protection
  • Overvoltage protection (including load dump)
  • Reverse battery protection with external resistor
  • ESD protected

Applications

  • Compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads in industrial applications
  • All types of resistive, inductive and capacitive loads
  • Replaces electromechanical relays, fuses and discrete circuits
  • Most suitable for loads with high inrush currents
Technical specifications
Number of channels 4
Version N channel
drain-source on resistance RDS (on) @ Tj = 25°C max 90 mΩ
Enclosure SOIC-8
max. Voltage 40 V
Max. current 15 A
max. operating temperature 85 °C
min. operating temperature -30 °C
Assembly SMD
Logistics
Country of origin AT
Customs tariff number 85412900
MSL MSL 3
Original Packaging Reel with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
