TLS710B0EJV50XUMA1 | Infineon Technologies

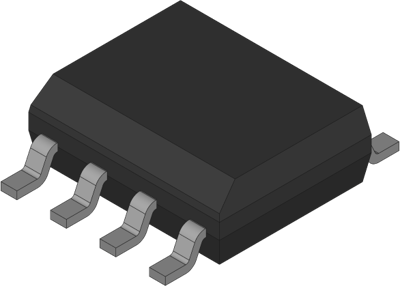

Voltage regulator, 5 VDC, 100 mA, positive, SOIC-8, TLS710B0EJV50XUMA1

Order No.: 89S2052
EAN: 4099879101686
MPN:
TLS710B0EJV50XUMA1
SP001208582
TLS710B0EJV50XUMA1 Infineon Technologies Linear Voltage Regulators (LDOs)
Image may differ
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,933.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.7735 €

Linear regulator IC (LDOs), TLS710B0EJV50XUMA1, Infineon Technologies

The TLS710B0EJV50XUMA1 is a low dropout linear voltage regulator for load current up to 100 mA and it is the ideal solution for systems requiring very low operating current, such as those permanently connected to the battery. The device is designed for the harsh environment of automotive applications. Therefore standard features like output current limitation and overtemperature shutdown are implemented and protect the device against failures like output short circuit to GND, over-current and over-temperature.

Features

  • Wide input voltage functional range up to 40 V
  • Low current consumption
  • Very low dropout voltage
  • Wide temperature range
  • Over temperature shutdown

Applications

  • Automotive general ECU’s
  • 2-Wheeler ECU’s
  • Body modules, gateway's
  • Infotainment
  • Dashboard
Technical specifications
Assembly SMD
Enclosure SOIC-8
Version fest
Number of Regulators 1
Input voltage AC 4-40 V
Output voltage DC 5 VDC
Output current 100 mA
Polarity positiv
min. operating temperature -40 °C
max. operating temperature 150 °C
Logistics
Customs tariff number 85423990
Original Packaging Rolle mit 2.500 Stück
