TLS805B1LDV50XUMA1 | Infineon Technologies

Voltage regulator, 5 VDC, 50 mA, positive, TSON-10, TLS805B1LDV50XUMA1

Order No.: 89S2054
EAN: 4099879101709
MPN:
TLS805B1LDV50XUMA1
SP001349920
TLS805B1LDV50XUMA1 Infineon Technologies Linear Voltage Regulators (LDOs)

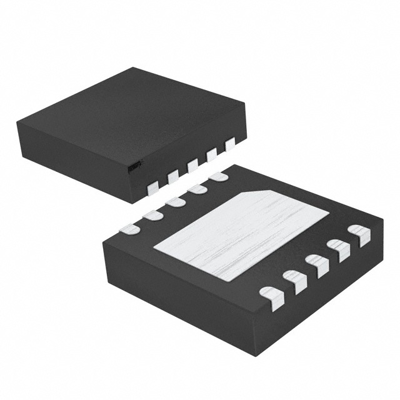

Image may differ
Unit Price (€ / pc.)
0.7854 € *
Available: 0 pcs.
Leadtime: 52 Weeks **
Total Price:
3,927.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.7854 €

Linear regulator IC (LDOs), TLS805B1LDV50XUMA1, Infineon Technologies

The TLS805B1LDV50XUMA1 is a linear voltage regulator featuring wide input voltage range, the regulator is perfectly suitable for automotive or any other supply systems connected permanently to the battery. Internal protection features like output current limitation and overtemperature shutdown are implemented to protect the device against immediate damage due to failures like output short circuit to GND, over-current and over temperatures.

Features

  • Wide input voltage functional range up to 42 V
  • Ultra low quiescent current
  • Very low dropout voltage
  • Wide temperature range
  • Over temperature shutdown
Technical specifications
Assembly SMD
Enclosure TSON-10
Version fest
Number of Regulators 1
Input voltage AC 2,75-42 V
Output voltage DC 5 VDC
Output current 50 mA
Polarity positiv
min. operating temperature -40 °C
max. operating temperature 150 °C
Logistics
Customs tariff number 85423990
Original Packaging Rolle mit 5.000 Stück
