XC2321D20F66VAAKXUMA1 | Infineon Technologies

C166SV2 microcontroller, 16/32 bit, 66 MHz, VFQFN-48, XC2321D20F66VAAKXUMA1

Order No.: 89S2159
EAN: 4099879144386
MPN:
XC2321D20F66VAAKXUMA1
SP000846748
Series: XC2000
XC2321D20F66VAAKXUMA1 Infineon Technologies Microcontrollers

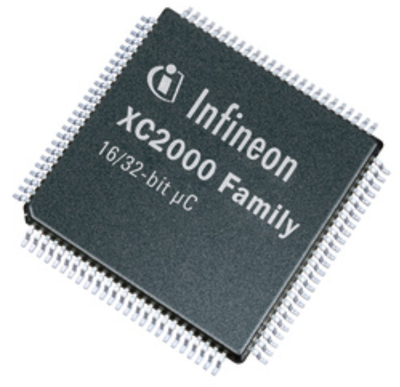

Image may differ
Unit Price (€ / pc.)
3.9984 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9,996.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
3.9984 €

Microcontroller, XC2321D20F66VAAKXUMA1, INFINEON

The XC2321D20F66VAAKXUMA1 is a 16/32-bit single-chip microcontroller with 32-bit performance. On-chip memory modules include program Flash, program RAM, and data RAM.

Features

  • High Performance CPU with 5 stage pipeline and MPU
  • Interrupt system with 16 priority levels providing 64 interrupt nodes
  • Memory content protection through Error Correction Code (ECC) for Flash memory and through parity for RAMs
  • On-chip debug support via Device Access Port (DAP), Single-Pin DAP (SPD) or JTAG interface
Technical specifications
Number of I/Os 33
Number of pins 48
Version Flash
Enclosure VFQFN-48
Core Size 16/32 bit
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly SMD
Processor core C166SV2
Data RAM Size 12 KB
Voltage 3-5,5 V
Memory size 160 KB
Clock frequency 66 MHz
Logistics
Customs tariff number 85423190
Original Packaging Rolle mit 2.500 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
