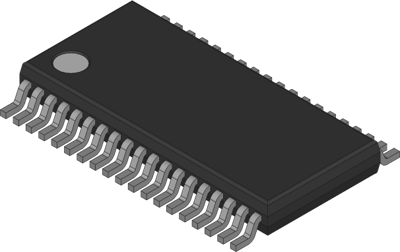

XMC1201T038F0064ABXUMA1 | Infineon Technologies
ARM Cortex M0 microcontroller, 32 bit, 32 MHz, TFSOP-38, XMC1201T038F0064ABXUMA1
Unit Price (€ / pc.)
1.7255 € *
Available: 0 pcs.
Leadtime: On Request **
Microcontroller, XMC1201T038F0064ABXUMA1, Infineon Technologies
The XMC1201T038F0064ABXUMA1 is a high-performance 32-bit ARM Cortex-M0 CPU processor core and also is optimized fol LED lighting applications and human-machine interface.
Features
- On-chip memory
- Two Universal Serial Interface Channels (USIC), usable as UART, double-SPI, quad-SPI, IIC, IIS and LIN interfaces
- Ultra low power consumption
- Capture/Compare Units 4 (CCU4) as general purpose timers
- System control unit (SCU) for system configuration and control
Applications
- Industrial applications
Technical specifications
| Number of I/Os | 26 | |
| Number of pins | 38 | |
| Version | Flash | |
| Enclosure | TFSOP-38 | |
| Core Size | 32 bit | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Processor core | ARM Cortex M0 | |
| Data RAM Size | 16 KB | |
| Voltage | 1.8-5.5 V | |
| Memory size | 64 KB | |
| Clock frequency | 32 MHz |
Download
Logistics
| Customs tariff number | 85423190 |
| Original Packaging | Reel with 3,000 pieces |
