BSP171P | Infineon Technologies

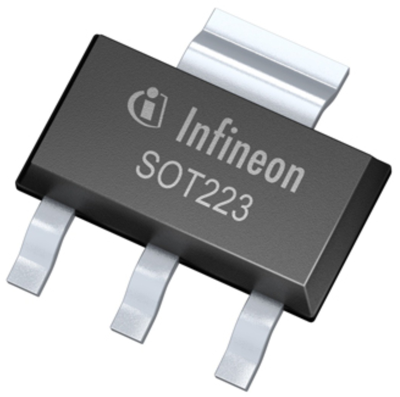

Name: Infineon Technologies P-channel SIPMOS small signal transistor, -60 V, -1.9 A, SOT-223, BSP171P
Brand: Infineon Technologies
SKU: 17S7580
Price: 0.62 EUR
Availability: InStock

Infineon Technologies P-channel SIPMOS small signal transistor, -60 V, -1.9 A, SOT-223, BSP171P

Order No.: 17S7580

EAN: 4099879032928

MPN:

BSP171P

Series: BSP171

Image may differ

Key Specification:

Version P-channel

max. Voltage -60 V

Max. current -1.9 A

drain-source on resistance RDS (on) max @VGS=10V 300 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.6188 € *

Available: 18 pcs.

Available in 5 Days: 31,725 pcs.

Leadtime: 30 Weeks **

Total Price:

0.62 € *

Price list

Quantity

Price per unit*

1 pcs.

0.6188 €

25 pcs.

0.5593 €

50 pcs.

0.5236 €

100 pcs.

0.4998 €

250 pcs.

0.4760 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, BSP171P, Infineon Technologies

Features

P-Channel
Enhancement mode
Logic level
Avalanche rated

Applications

Power management functions
Motor control
On-board charger
DC-DC
Consumer
Logic level translators
Power MOSFET gate drivers

Technical specifications

	Version	P-channel
	drain-source on resistance RDS (on) max @VGS=10V	300 mΩ
	Gate Charge Qg @10V (nC)	1.3x10<sup>-8</sup> C
	Enclosure	SOT-223
	max. Voltage	-60 V
	Max. current	-1.9 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
